1988 Completely Redone in 2010 Powered by C9 Caterpillars. New Motors, New Hardware.

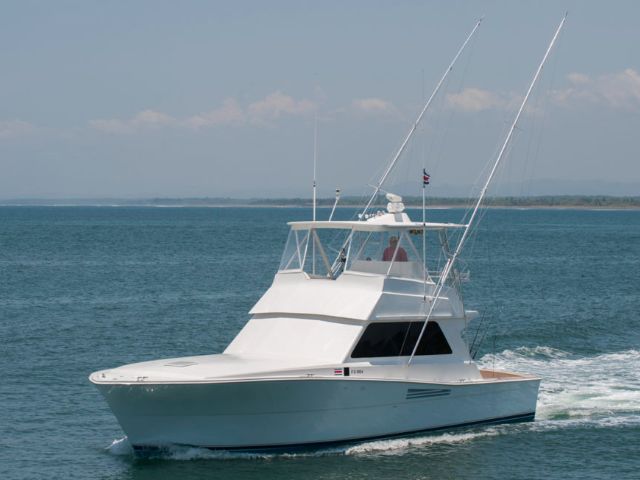

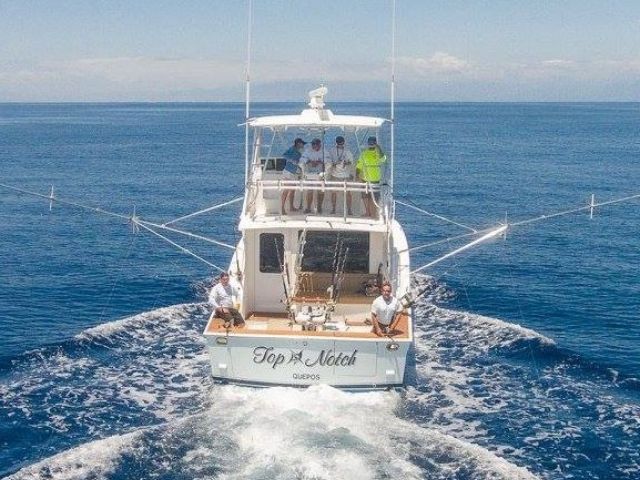

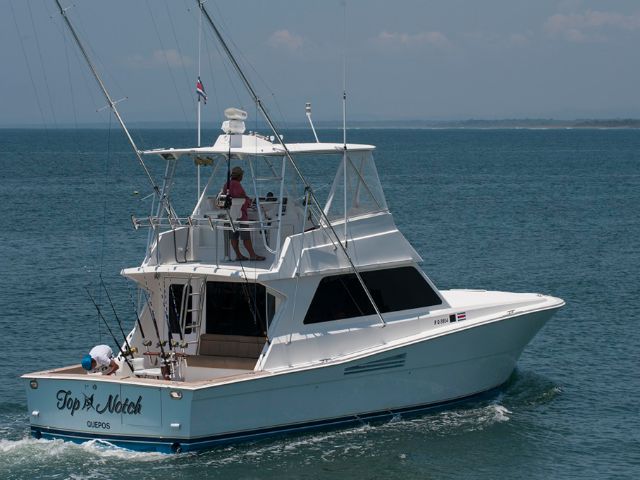

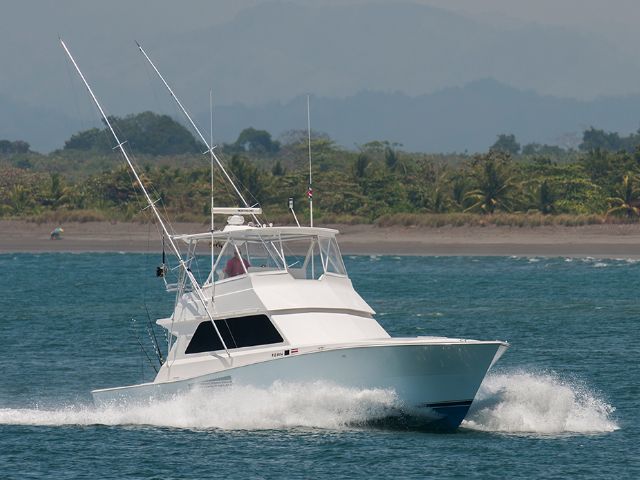

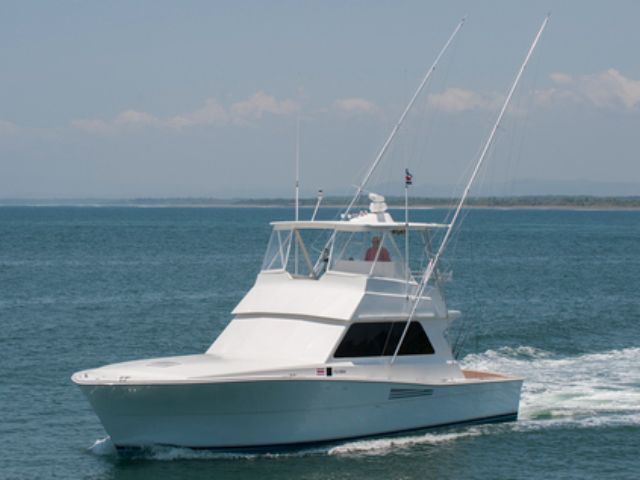

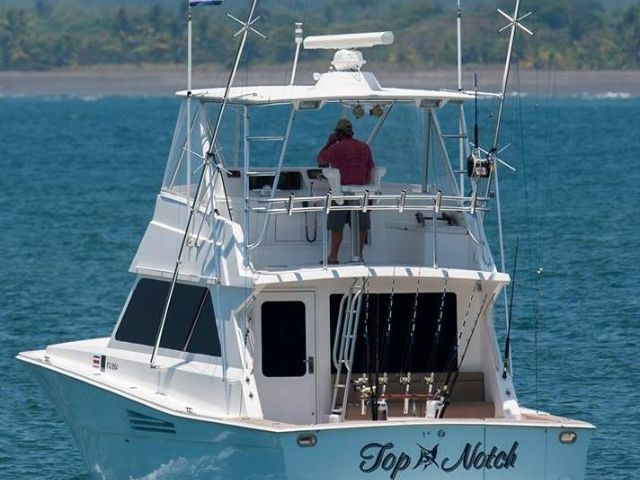

This is a fiberglass constructed 45′ convertible sport fisher by Viking Yacht, New Gretna, New Jersey, USA. This was a major rebuilt in 2010 and everything bought new in 2010. New Motors. New Hardware. Windows replaced . Her Hull is painted with Awlgrip ice blue with a blue and gold boot stripe. The Fly-Bridge has a helm pod with single lever controls and a Palm Beach Towers hard top. There is a tuna door in the starboard side of the transom. This boat is powered by twin Cat C-9 diesels 575HP 2009. Hull identification number VKY45130K788.
Note: Hull has been re-gel coated. This is a great opportunity! Please contact for more information.
Costa Rican Flagged
- Name: “Viking Sport & Fishing”
- Registration Number: PQ-8954
- HIN: VKY45130K788
- Hailing Port: Puerto Quepos, Costa Rica
- Year Completed: 1988
- Hull Material: FRP (Fiberglass)
- Gross Tonnage: 15.48 GRT
- Net Tonnage: 7.43 NRT
- Length: 13.9 mt
- Beam: 4.57mt
- Depth: 1.22mt
Principle Dimensions
- LOA: 45′ 5″
- Beam: 15′
- Draft: 4′
- Displacement: 44,400 lbs
Hull Construction
This boat is of fiberglass and polyester resin construction. She has four main longitudinal stringers that start in the transom, disappears in the bow, and act as engine beds in the engine room There are additional longitudinal and transverse members as needed. She has transverse structural bulkheads fully tabbed around the perimeter. Her hull sides, deck, house, and housetops have a core material in some areas. Her bottom is sold fiberglass. The decks are fiberglassed to the hull around the full perimeter.
Tankage
It carries approximately 600 gallons of diesel in on fiberglass tank located under the cockpit decks.
She carries approximately 160 gallons of fresh water in (1) fiberglass tank located under the galley sole.
There is a plastic 42 gallon waste holding tank that is located in the forward bilge.
Note: All of the fuel hoses, valves and fittings are USCG-approved – Updated and replaced in 2009.
Vessel Layout
It is a fly-bridge model sport fisher with a salon over the engine room and sleeping accommodations forward, below. She is a fully furnished and air-conditioned yacht.

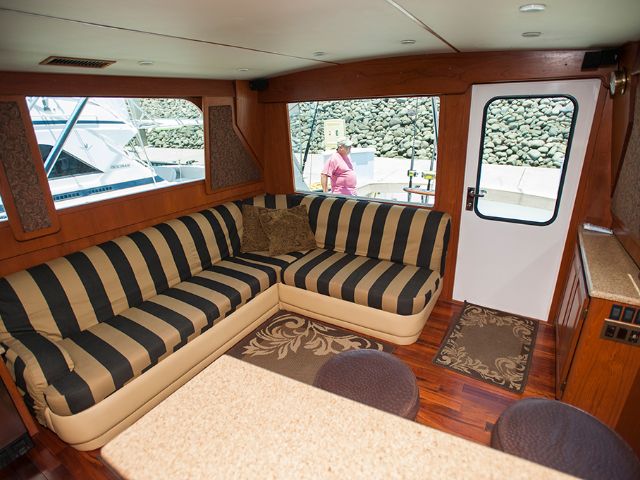

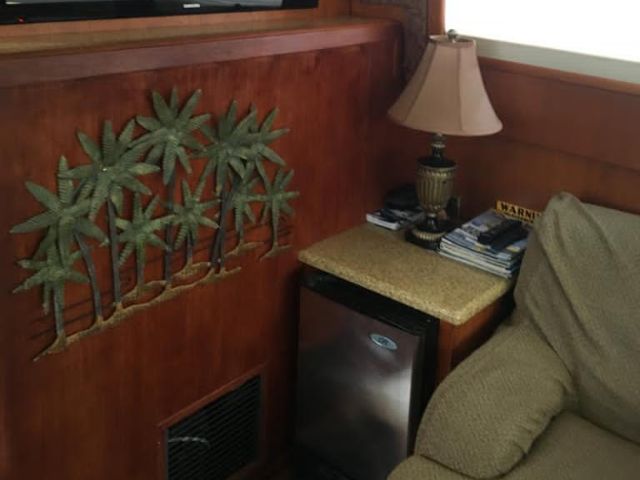

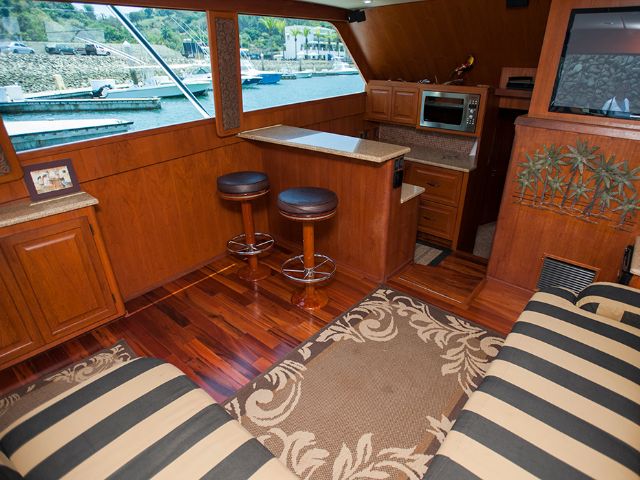

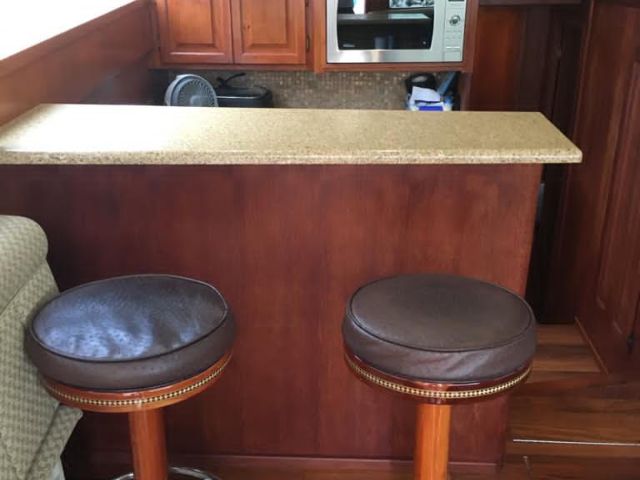

The salon is accessed by the way of a door located port side of the forward cockpit. The salon is decorated nicely and is very well-kept. It has an off-white headliner and a hardwood sole. The cabinetry and bulkheads and doors are finished in varnished teak wood. The side windows are frameless. The window in the aft bulkhead is fixed. Located in the starboard side of the salon is an ultra leather upholstered L-shaped couch with storage below. Forward of the couch is a small countertop over a SPT ice machine followed by an entertainment center equipped with a Samsung 43″ flat screen TV and a Bose Surround sound system. Port side of the salon is the galley area which is finished with tan and brown Quartz countertops with 2 inlayed marlins in the galley and two release bar stools.

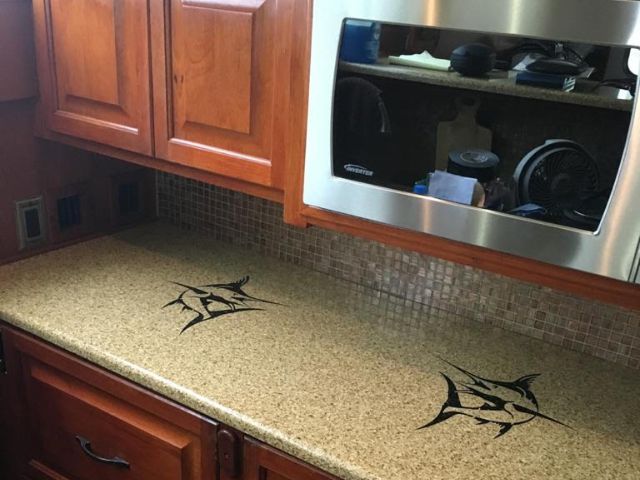

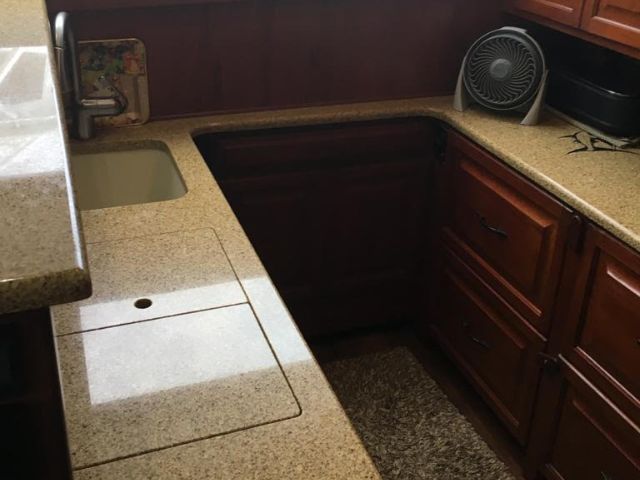

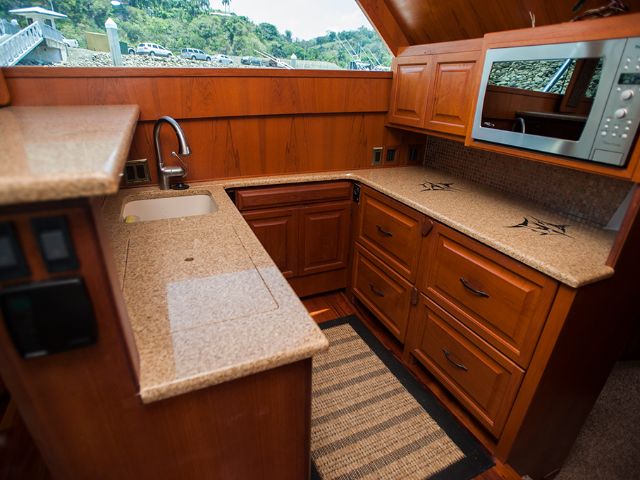

The galley sole is also varnished hardwood. The following equipment:
- White corian sink with storage below
- Garbage Disposal
- EuroKera Gourmet 2 burner cook top 2009
- Panasonic microwave/inverter oven 2015

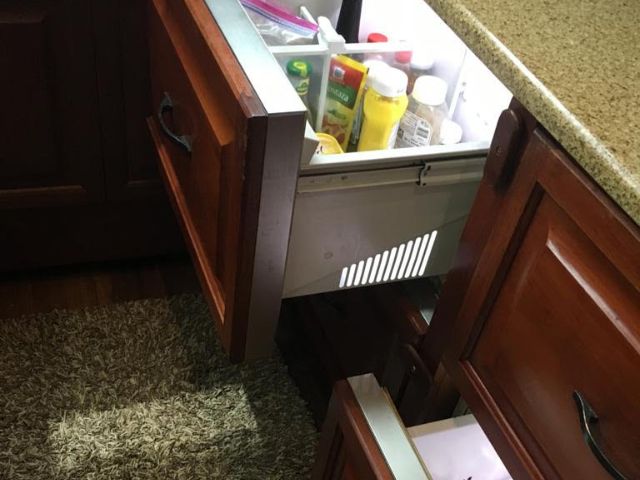

- (4) GE monogram under the counter refrigerator drawers 2009
- SPT freezer
- Ample drawers and cabinets
Located port side of the salon door is a cabinet housing the main electrical panel which consists of the following:
- 12 volt DC Ships Service
- 120/240 volt AC Ships Service
- Gen Set controls and power selector switches
Seen in the stateroom was the following:
- Two single berths with storage beneath the lower berth
- Closets with shelve storage

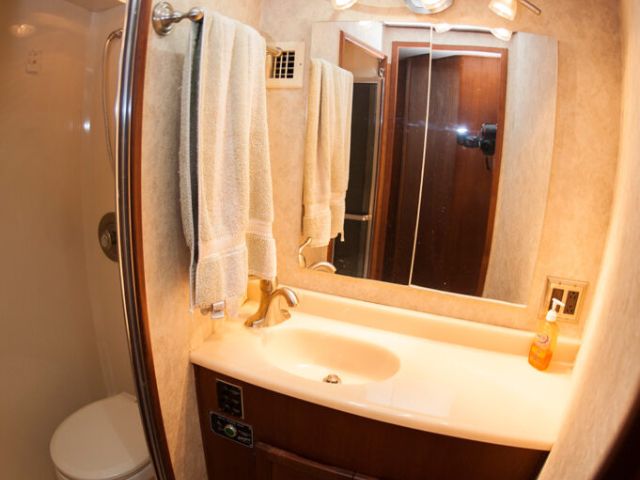

Across from the crew’s stateroom is a common head which is equipped with the following:
- Off-white marble sink and counter top with a mirrored vanity above and storage cabinet below
- Head Hunter marine toilet 2009
- Shower stall with spritzer style shower head

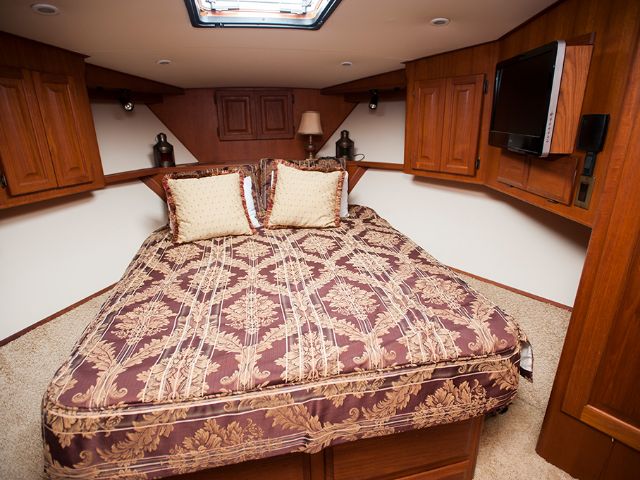

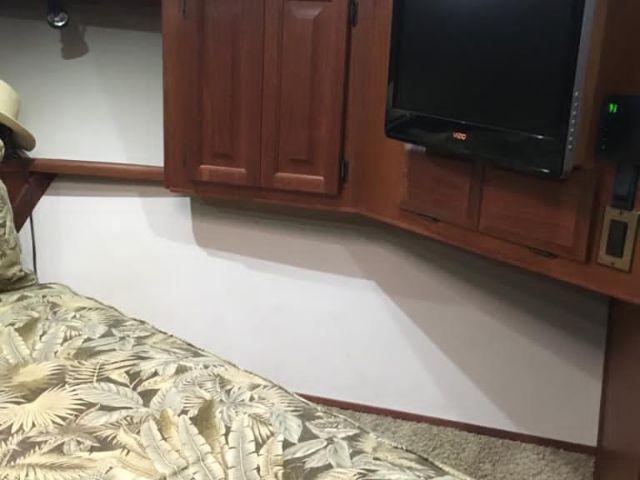

Forward is the master stateroom which is equipped with the following:
- Double berth master craft 8″ mattress 2009
- (2) Cedar lined closets
- Clothes cabinets
- Vizio 22″ flat screen TV 2009
- Sony VCR
- APC Battery backup and surge protection
The master stateroom has its own head which is equipped with the following:
- Off-white marble sink and countertop with a mirrored vanity above and storage cabinet below
- Head Hunter marine toilet 2009
- Shower stall with spritzer style shower head
- Anchor chain locker located in the bow stem
The salon and cabins are serviced by (3) A/C units:
- Master – 10,000 BTU 2015
- Guest – 8,000 BTU 2009
- Salon – 24,000 BTU 2009
Cabin Bilges
- Plastic waste tank
- SeaLand macerator pump model 600344812
- (2) “Y” valves for waste system discharge
- (2) waste discharge and (1) raw water intake sea cocks
- Mach 5 Fresh water system pressure tank
- (1) Sump pump for showers and sinks discharge
- Rule 2000 gph bilge pump with float switch
Decks & Equipment
White painted nonskid foredecks. All the way forward is an anchor locker. Seen stowed in this locker is a 35lb galvanized Danforth anchor shackled to approximately 36′ of 3/8″ galvanized chain and approximately 300′ of 3/4 nylon rode. On either side of the locker are two stainless steel bow chocks and two stainless steel 12″ bow cleats. Further aft, along the toe rail are two stainless steel 12″ breast cleats. There is a 23″x23″ Bomar flush deck hatch in the center of the foredeck which gives ventilation to the accommodations below. Seen in the white Awlgrip nonskid side decks are two 12″ stainless steel beam cleats, one on each side deck.
There is a fuel fill to starboard and water fill and waste cap to port. A white powder coated hand rail is bolted to the house sides.

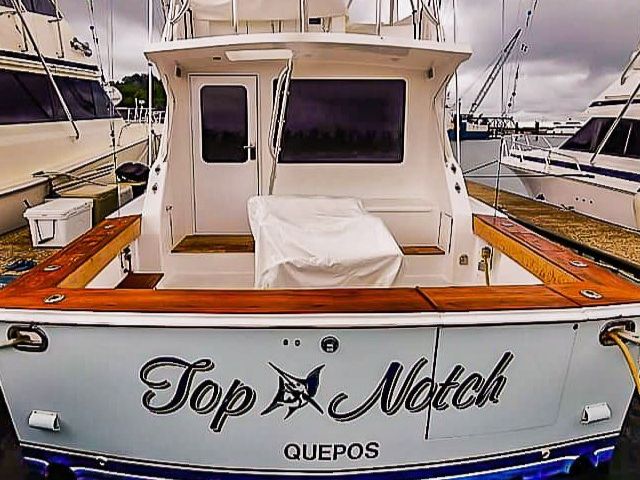

Cockpit
The cockpit area has white awl-grip nonskid decks. In the aft corners of the bulwarks are stainless steel 12″ stern cleats that are tended by stainless steel hawse pipes in the transom corners. Four rod holders are flush mounted into the covering boards, two in each side. Also flush mounted in the side covering boards are six tuna tubes, three on each side. Against the forward bulkhead starboard side host a mezzanine seating with storage and fuel tank pickups below. Port side you will find a teak step to the salon door with an insulated drink box below the step. Located in the forward corner of the cockpit bulwarks, starboard side are (2) 120/240v 50 amp shore power receptacles and a phone and TV plug in. Found in the port corner are dockside water, fresh water and saltwater wash down connections. A 12 volt receptacle is found under each side covering board. A pedestal mounted release fighting chair with rocket launcher is located centerline of the cockpit. Aft of the fighting chair is a flush deck fish box that has a direct feed from the icemaker and a hatch accessing the lazarette. Access to the lazarette is also gained by removing the fish box.
Seen in the lazarette was the following equipment:
- 1 1/2″ stainless steel rudder posts, bronze tiller arms, and a Hynautic steering ram
- Hynautic Steering reservoir
- Simrad RF300 rudder feedback unit
- Bennett V-351 trim tab motor 2015
- (2) Transom underwater lights by Sea Vision 2009
- (3) sea cocks: for tuna tube pumps and saltwater wash-down pump
- (2) Rule General purpose pumps for tuna tubes
- Jabsco salt water wash down pump 2020
- Rule 2000 gph bilge pump with float switch / high water alarm

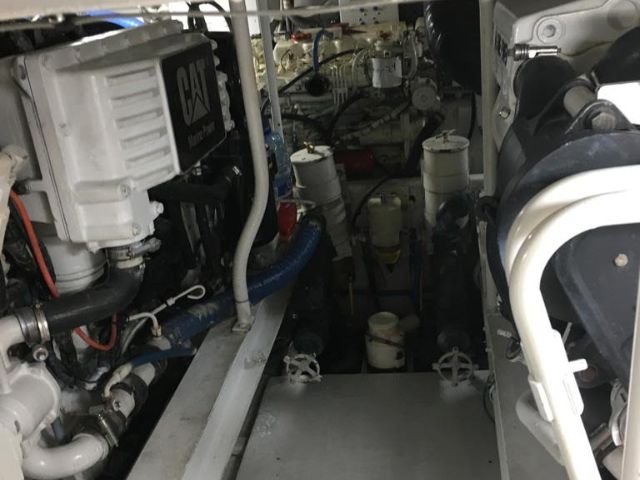

Engine Room
The engine room is accessed by lifting up the step to the galley. The engine room is illuminated by LED lighting. The following equipment was seen in the engine room:
Machinery

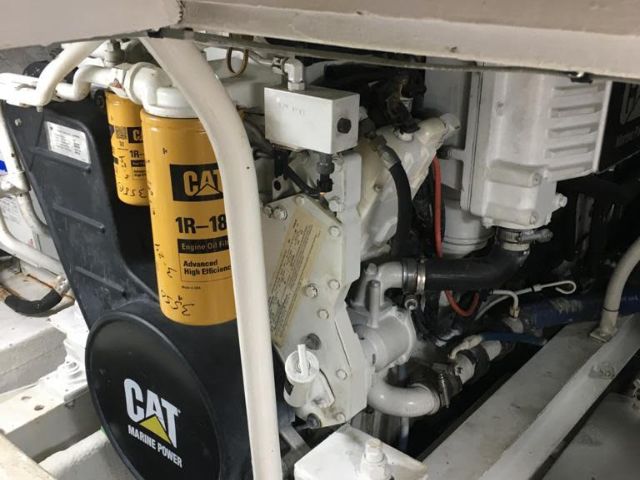

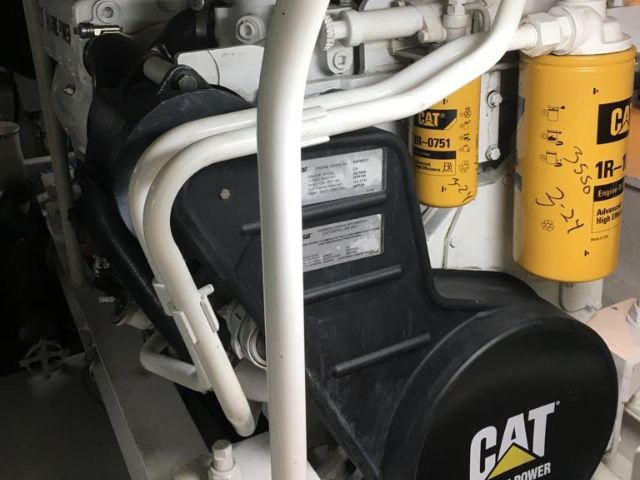

- (2) Caterpillar C-9, 575 HP, turbo charged marine diesels, hours 3635.9 reported 2009, Port Serial No. X9Y00212, Starboard Serial No. X9Y00196
- (2) ZF marine transmissions Model ZF286A, Ratio 1.75/1 Port Serial No. 20281149, Starboard Serial No. 20110369
- The main engines are protected by Racor 1000MA fuel filter/water separator
- The exhaust systems consist of the following: (2) stainless steel exhaust elbows, fiberglass exhaust tubes and silencers, all connected with exhaust hose and double clamped, exiting out the transom 2009
- Caterpillar control processor and junction box 2009
Electrical
- Westerbeke Marine Gen Set, Hours 1,800 reported
- The Gen Set is protected by a Racor / Parker fuel filter/water separator
- Generator exhaust system consists of 2″ exhaust hose from generator to a fiberglass Vernalift wet muffler, to exhaust hose, fiberglass exhaust tube which exits out the starboard main engine exhaust near the transom.
- Charles solid power battery charger 2009
- (2) Engine room blowers
- Battery selector switches
- Raritan hot water heater, model 17120203, 240 volt. 12 gallon capacity 2009
Pumps
- Dometic Eskimo ice maker, model EI600-230-OP, 230 volt (not working)
- LaMarche raw water circulating pump for ice maker
- Oberdorfer mode OB109MB A/C raw water circulating pump 2011
- (7) Deka group 31, 12 volt wet cell batteries, (2) for the House, (2) for the stbd Main Engine, (2) for the port
- Main Engine and (1) for the Gen Set 2018/2019
- Lesson oil change pump
- Crusair 24,000 BTU A/C compressor 2014
Miscellaneous
- Both M/Eraw water intakes are plumbed for crash pump capabilities
- Rule 3700 gph bilge pump, Rule 1100 gph bilge pump
- The 2″ stainless steel main engine output shafts are equipped with tides drip less shaft seals
- (2) Bronze sea strainer for Gen Set and ice maker
- Fireboy man/auto 40 lb fire extinguisher 2017
Fly-Bridge

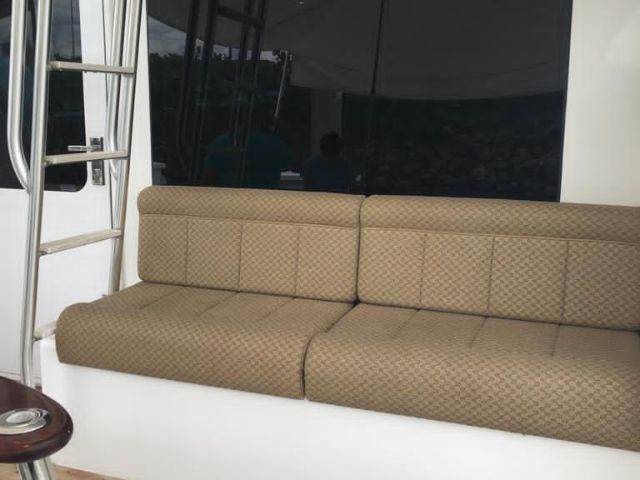

Access to the fly-bridge is by way of an aluminum ladder in the forward center of the cockpit. This area has white Awlgrip non-skid decks and has both extended 42″ over mezzanine with protected overhead by a fiberglass hard top (Palm Beach Towers) on three sides by isinglass curtains. There is bench seating along the starboard side and in front of the helm console both with vinyl cushions 2018. These bench seats all have storage space below. The main helm station is located in the center of the bridge. This station has one pedestal mounted helm chair by Murray Bros.
The following equipment was seen at the helm station:
- Hynautic steering pump
- 17 1/2″ stainless steel helm wheel
- Ritchie 4″ Power Damp Plus Compass
- Caterpillar electronic engine instrumentation
- Single Lever engine controls
- Simrad AP-24 Autopilot
- North Star Explorer S310 Data display (sea temperature, digital depth, speed, trip log)
- (2) Simrad NSS12 multi-function monitors, for radar, GPS, sounder display 2017
- (2) Icom IC-M504 VHF radios
- (1) Icom IC-M330 VHF radio 2018
- Fusion MS-UD650 digital music 2016
- (4) Fusion 7″ speakers 2016
- Halon 1301 fire extinguisher release system
- Trim tab controls
- 12volt Distribution panel
- Bilge pump manual switches
Hard Top
- Palm Beach Tower Hard Top 2009
- Top side of the hard top is white Gel Coat
- (2) GPS antenna
- North Star radar scanner model JMA-2344 2009
- Horn
- Navigation Lights
- (2) VHF antenna
(2) halogen flood lights
Bilge Pumps
- Forward: (1) Rule 2000 gph with float switch
- Engine room aft: (1) Rule 3700 gph with float switch / High water alarm
- Engine room Fwd: (1) Rule 800 gph with float switch
- Lazarette: Rule 2000 gph with float switch / High water alarm
- The main engine seacocks are plumbed with crash pump capabilities
Ground Tackle
35lb galvanized Danforth anchor, approximately 36′ of 5/16″ galvanized chain, approximately 300′ of 3/4″ nylon rode
Fishing Equipment
- Rupp Triple spreader aluminum outriggers 2009

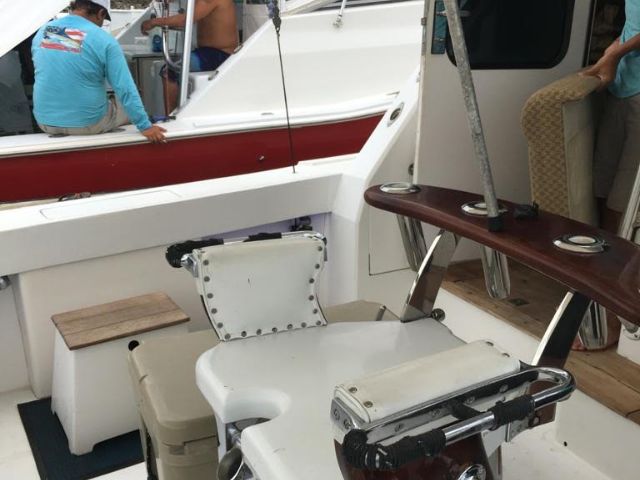

- Release fighting chair with 4 rocket launcher 2009
- (8) flush mount rod holders located in the cockpit covering boards and house sides
- (6) Aluminum rod holders, welded to the fly-bridge railing
- (2) Penn International 50 SW teaser reels
- (6) Tuna Tubes
Safety Gear & Equipment
- (10) adult type I life vests, (1) child life vest
- (2) Throwable type IV life rings with 50′ of floating retrieval line
- Navigation lights
- (3) 6 lb and (1) 8 lb portable ABC fire extinguishers (located in the Galley, Master, Engine room and Fly bridge)
- Fireboy Manual / Automatic 2017
- (2) Viking six person life rafts type 6UKCL-ISO9650-2
- Signal flare kit
- ACR Global Fix E.P.I.R.B.
- First aid kit
- (4) Automatic bilge pumps
- High Water Alarms
- Horn
